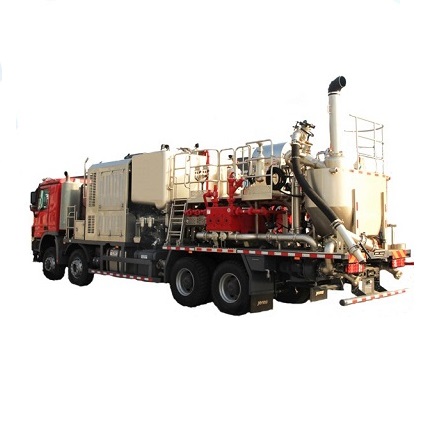

Model UN-2-600 cementing truck is designed for injection of various fluids while cementing, for development and workover of wells and for other preflush and overflush operations.
Specifications
|
Model |
Measurement unit |
UN-2-600 |
|||
| Chassis | – | MERCEDES, MAN, SCANIA, AUSMAH | |||
| Caterpillar, Weichai engine | unit | 2 | |||
| Allision 4700OFS automatic transmission | unit | 2 | |||
| Fluid mechanics | – | from chassis engine | |||
| Triplex plunger pump DTP 600S HD (600 l.s.) | unit | 2 | |||
| Mixer | – | off center | |||
| Cement flow control valve | – | off center | |||
| Water supply centrifugal pump 4×3 | unit | 2 | |||
| Booster centrifugal pump RA56 | unit | 2 | |||
| Densiometer | – | Micro Motion 3” F3000 | |||
| Main controller | – | Allen-Bredley PLC | |||
| Mixing tank | m3 (bar) | 1.4 (8) | |||
| Ccement surge tank | m3 (bar) | 2х1.5 (20) | |||
| Gauge tank | m3 (bar) | 2х1.5 (2х10) | |||
| Fuel tank | l. | 400+300 | |||
| Hydraulic tank | l. | 170 | |||
| Air receiver | l. | 80 | |||
| Hydro block | – | 4” | 4 1/2” | ||
| Pressure | PSI (MPa) | 8000 (56) | 6000 (43) | ||
| Capacity | m3/min | 1.67 | 2.13 | ||
