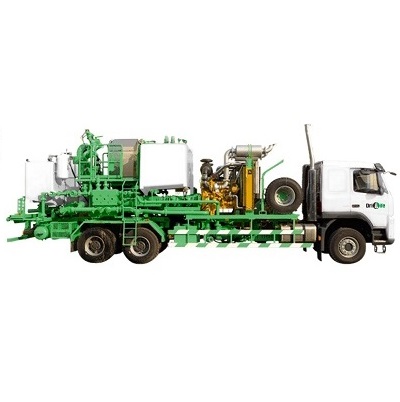

Model UN-600 cementing truck is designed for injection of various fluids while cementing, for development and workover of wells and for other preflush and overflush operations.
Specifications
|
Model |
Measurement unit |
UN-600 |
||
| Chassis | – | MERCEDES, MAN, SCANIA, AUSMAH | ||
| Caterpillar, Weichai engine | unit | 1 | ||
| Allision 4700OFS automatic transmission | unit | 1 | ||
| Fluid mechanics | – | from chassis engine | ||
| Triplex plunger pump DTP 600S HD (600 l.s.) | unit | 1 | ||
| Mixer | – | Off center | ||
| Cement flow control valve | – | Off center | ||
| Water supply centrifugal pump 4×3 | unit | 1 | ||
| Booster centrifugal pump RA56 | unit | 1 | ||
| Densiometer | – | Micro Motion 3” F3000 | ||
| Main controller | – | Allen-Bredley PLC | ||
| Mixing tank | m3 (bar) | 1.4 (8) | ||
| Cement surge tank | m3 (bar) | 2х1.5 (20) | ||
| Gauge tank | m3 (bar) | 2х1.5 (2х10) | ||
| Fuel tank | l. | 400+300 l. | ||
| Hydraulic tank | l. | 170 | ||
| Air receiver | l. | 80 | ||
| Hydro block | – | 3” | 3 1/2” | |
| Pressure | PSI (MPa) | 14000 (97.5) | 10000 (69) | |
| Capacity | m3/min | 0.95 | 1.27 | |
