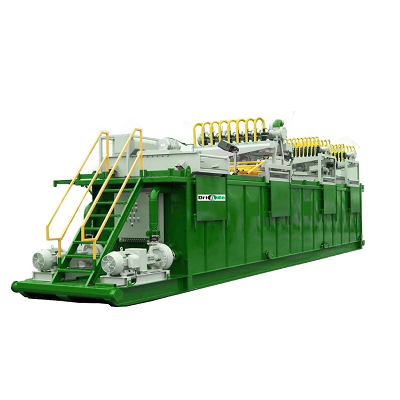

Model CS circulating systems are designed to clean and store drilling mud while drilling exploration and production wells. It is a compact system, which is produced in containers of 160 m3 to 320 m3.
Specifications
| Model | CS-160 | CS-200 | CS-240 | CS-320 | |
| Separation grade levels | units | 5 | 5 | 5 | 5 |
| Tank volume | m3 | 160 | 200 | 240 | 320 |
| Desilting device | units | 1 | 1 | 1 | 1 |
| Degaser | units | 1 | 1 | 1 | 1 |
| Mud screen | units | 1 | 1 | 2 | 2 |
| Sieve | units | 1 | 1 | 1 | 1 |
| Skimming machine | units | － | 2 | 2 | 2 |
