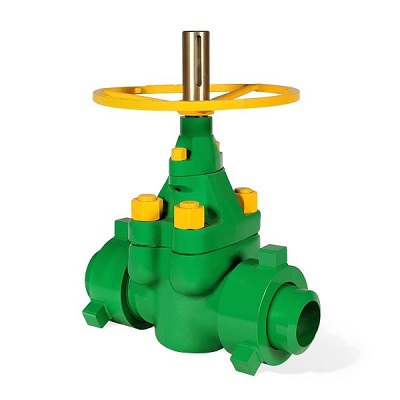

The quick-detachable mud gate valve is designed to block the through hole in the mud pump manifold of mud pumps. Pipeline clam – with the help of quick-release connection. The shutter tightness is reached by blocking the passage section of the valve with a gate.

  • Valve operation – manual
  • Nominal size, mm (in): 100 (4)
  • Work pressure, MPa (PSI): 21-35 (3000-5000)
  • Service environment: drill fluid, oil, water
  • Work temperature, °С: from -60 to +121

Specifications

№ Type Nominal size, mm Work pressure
mm in MPa PSI
1 VGD 100×3000 100 4 21 3000
2 VGD 100×5000 100 4 35 5000
